• 產品介紹 Product Introduction

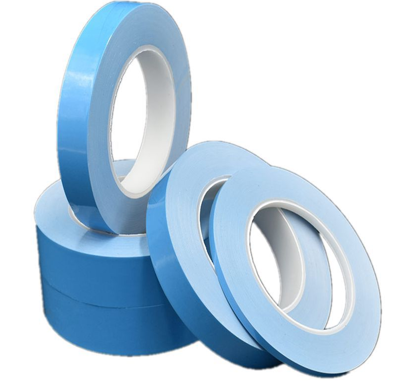

       導熱膠帶是由丙烯酸樹脂和導熱填料制成，有的膠體中會添加玻纖等基材。導熱雙面膠可以為您提供雙重功能，出色的傳熱以及可靠的機械緊固，將散熱設備（散熱器）連接到組件時，無需額外的緊固硬件。

       Thermal conductive tape is made of acrylic resin and thermal conductive filler. Some colloids will add glass fiber and other substrates. Heat conductive double-sided adhesive can provide you with dual functions, excellent heat transfer and reliable mechanical fastening. When connecting the heat dissipation equipment (radiator) to the components, no additional fastening hardware is required.

• 產品特點 Product Features

       -出眾的粘合強度 Superior bond strength

       -超低的熱阻 Ultra low thermal resistance

       -可模切成各種尺寸 Die cutting various size

• 典型應用 Typical Application

       -功率芯片和散熱器之間 Between Power Chip And Radiator

       -電視機LED燈條 TV LED light bar

       -和其他導熱材料復合使用 Combined with other heat conducting materials

       -CPU固定 CPU fixed

       -顯示屏主板IC散熱 Display mainboard IC heat dissipation

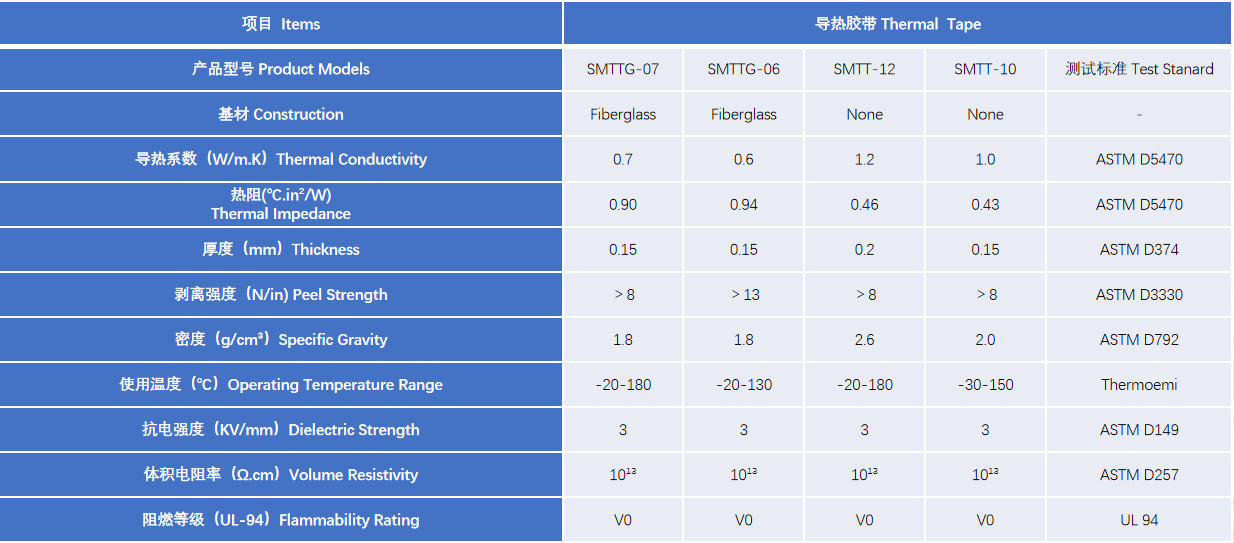

• 產品型號 Product Models
